Bridon®

8 Series

Bridon 8 series is a range of general purpose 6 stranded galvanised & bright steel wire ropes produced with a steel core, fully lubricated during manufacture producing in accordance with EN 12385.

Applications

Applications

  • Construction Cranes
  • Port Cranes
  • Industrial Cranes
  • Offshore Cranes
  • Winches
  • Drilling rigs
Benefits

Benefits

  • Improved bending fatigue performance
  • Better retention of internal lubrication
Features

Features

Compaction -
Core IWRC
Steel Grades 1960 or 2160
Lay type Langs lay or Regular lay
Lay Direction RH or LH
Finish Bright or Galvanised

Bridon® 8 Series specification

Tables

Diameter Nominal length mass Minimum breaking force
EIPS / 1960 EEIPS / 2160
mm inch kg/m lbs/ft kN Tonnes Tons kN Tonnes Tons
12.0 - 0.58 0.39 100 10.2 11.2 111 11.3 12.5
- 1/2  0.65 0.44 113 11.5 12.7 124 12.6 13.9
13.0 - 0.68 0.46 118 12.0 13.3 130 13.3 14.6
14.0 - 0.79 0.53 137 14.0 15.4 151 15.4 17.0
- - 0.83 0.55 142 14.5 16.0 157 16.0 17.6
- 5/8  1.03 0.68 179 18.3 20.1 197 20.1 22.1
16.0 - 1.04 0.70 179 18.3 20.1 197 20.1 22.1
18.0 - 1.32 0.88 226 23.0 25.4 249 25.4 28.0
19.0 - 1.47 0.98 252 25.7 28.3 278 28.3 31.2
- 3/4  1.48 0.99 252 25.7 28.3 278 28.3 31.2
20.0 - 1.63 1.09 279 28.4 31.4 308 31.4 34.6
22.0 - 1.97 1.32 338 34.5 38.0 372 37.9 41.8
- 7/8  2.01 1.35 338 34.5 38.0 372 37.9 41.8
24.0 - 2.34 1.58 402 41.0 45.2 443 45.2 49.8
- 1       2.63 1.76 450 45.9 50.6 496 50.6 55.8
26.0 - 2.75 1.85 472 48.1 53.1 520 53.0 58.5
28.0 - 3.19 2.14 547 55.8 61.5 603 61.5 67.8
- 1  1/8  3.32 2.23 570 58.1 64.1 628 64.0 70.6
30.0 - 3.66 2.46 628 64.0 70.6 692 70.6 77.8
- 1  1/4  4.10 2.76 715 72.9 80.4 787 80.3 88.5
32.0 - 4.17 2.80 715 72.9 80.4 787 80.3 88.5
34.0 - 4.70 3.16 807 82.3 90.7 889 90.7 100
- 1  3/8  4.96 3.34 851 86.8 95.7 938 95.6 105
36.0 - 5.27 3.54 904 92.2 102 997 102 112
38.0 - 5.88 3.95 1010 103 114 1110 113 125
- 1  1/2 5.91 3.97 1010 103 114 1110 113 125

This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.

More six strand ropes

Bridon Dyform® 6

Bridon Dyform® 6

Bridon Dyform® 6 is a high performance compacted single layer constructed rope for various cranes and industrial applications.
Spiral Strand

Spiral Strand

A spiral strand is a composite of multiple layers of helically twisted steel wires. Layers are spun in opposite directions providing constructional and torque stability. The use of high strength steel wires makes it a good candidate as tension member in static applications. Our proprietary Bekaert blocking compound fills the cable on the inside, reducing the impact of steel-steel contact, and adding an additional barrier against corrosion.
WRI® Ultra

WRI® Ultra

WRI® brand rope without a plastic coating, Ultra is available in 6-strand design for drag position and 8-strand configuration for hoist position.
Bridon Diamond Blue®

Bridon Diamond Blue®

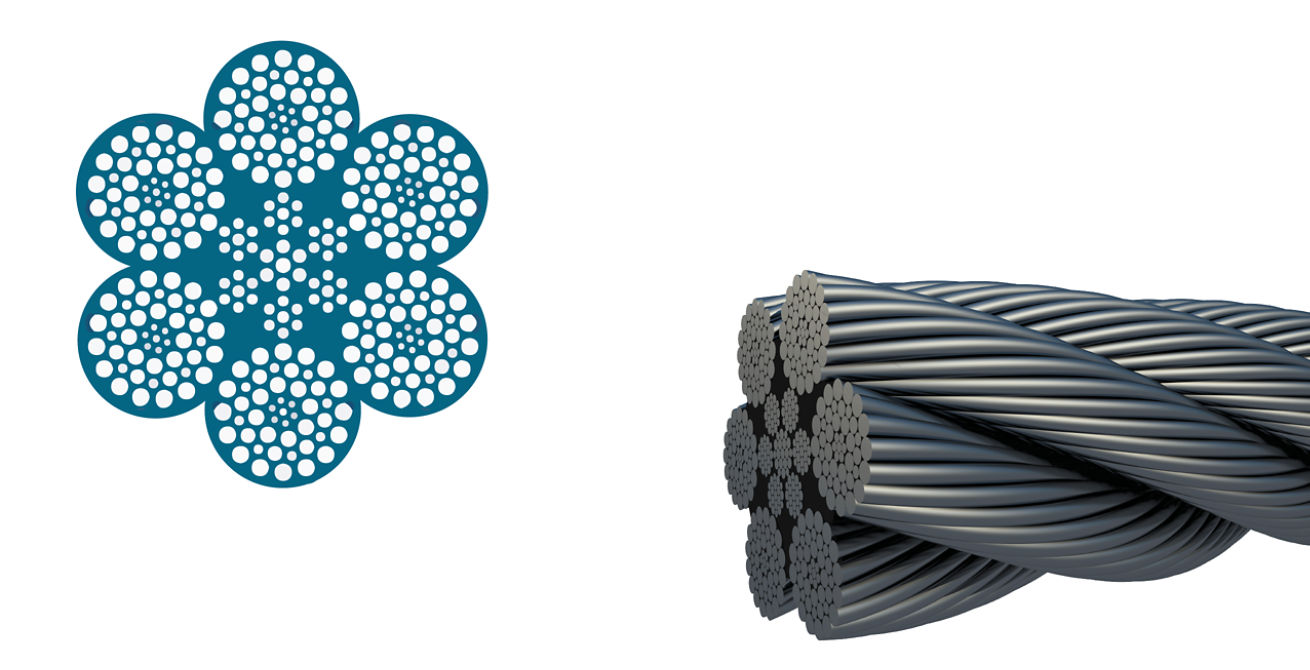

Bridon Diamond Blue® is a 6 strand galvanized conventional rope produced with a steel core fully lubricated during the production process.
