WRI® brand rope with Plastic coated design for draglines.

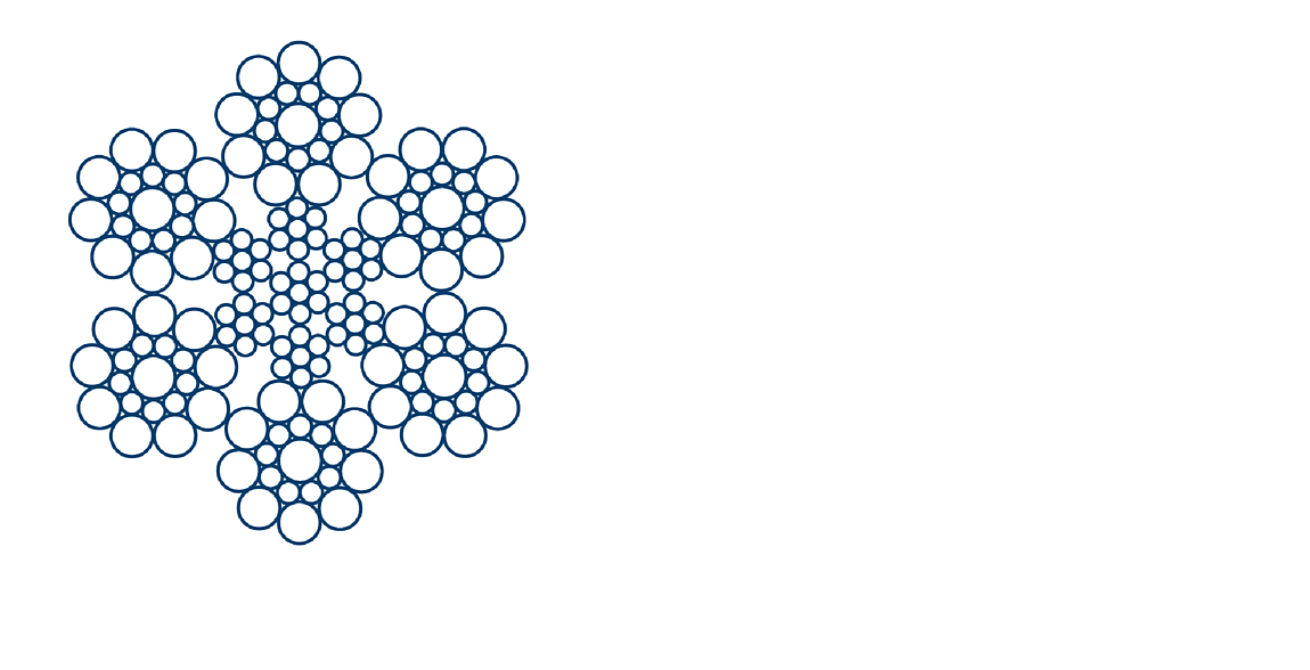

The 6-strand construction provides larger diameter strand for improved resistance to abrasion and is typically used for drag rope position.

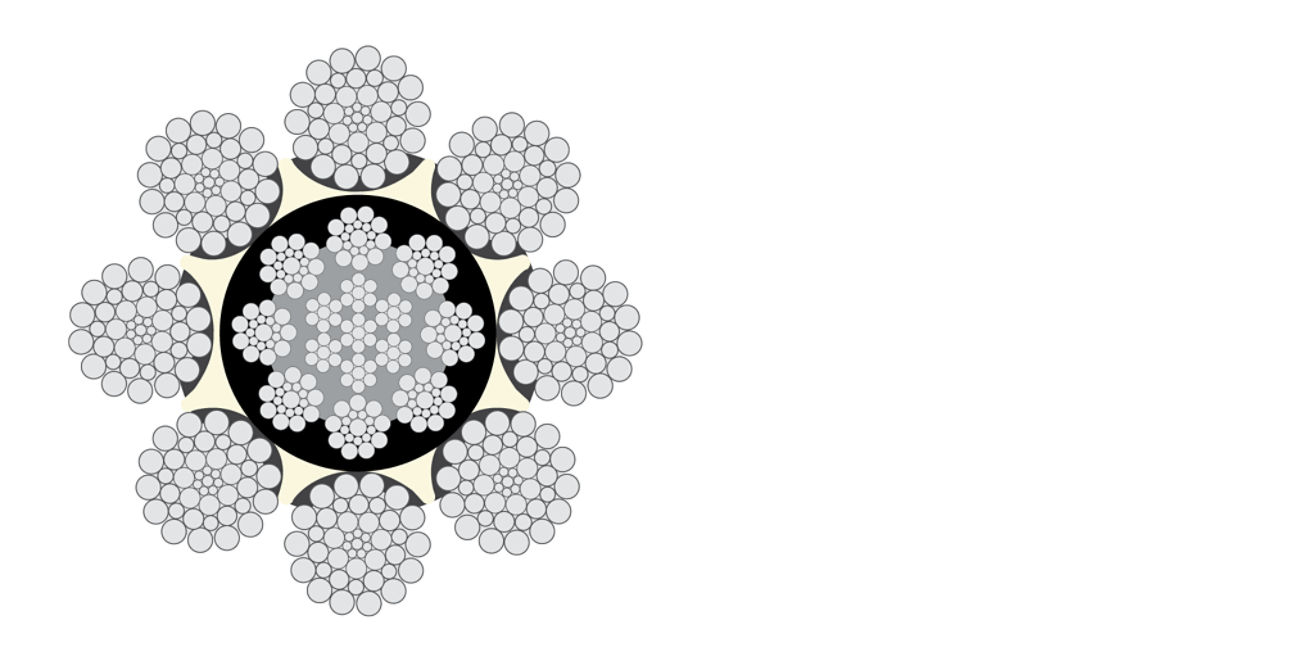

The 8-strand construction features increased flexibility and is typically used for hoist rope position.
Note for more detailed information please download the brochure above.
| DIAMETER | APPROX. WEIGHT | MINIMUM BREAKING LOAD | |||
| inches | mm | lb/ft | kg/m | Tons | kN |
| 2 3/4 | 70 | 12.7 | 18.9 | 311 | 2,765 |
| 2 7/8 | 73 | 13.9 | 20.7 | 341 | 3,035 |
| 3 | 76 | 15.2 | 22.6 | 371 | 3,297 |
| 3 1/8 | 79 | 16.5 | 24.6 | 402 | 3,576 |
| 3 1/4 | 83 | 18.0 | 26.8 | 440 | 3,915 |
| 3 3/8 | 86 | 19.4 | 28.9 | 468 | 4,168 |
| 3 1/2 | 89 | 20.8 | 31.0 | 543 | 4,836 |
| 3 5/8 | 92 | 22.5 | 33.5 | 583 | 5,191 |
| 3 3/4 | 95 | 24.0 | 35.7 | 625 | 5,563 |
| 3 7/8 | 98 | 25.7 | 38.2 | 646 | 5,749 |
| 4 | 102 | 27.5 | 40.9 | 689 | 6,130 |
| 4 1/8 | 105 | 29.3 | 43.6 | 732 | 6,519 |
| 4 1/4 | 108 | 31.2 | 46.4 | 777 | 6,916 |
| 4 3/8 | 111 | 33.4 | 49.7 | 824 | 7,330 |
| 4 1/2 | 114 | 35.2 | 52.4 | 871 | 7,753 |
| 4 5/8 | 117 | 37.2 | 55.4 | 921 | 8,193 |
| 4 3/4 | 121 | 39.3 | 58.5 | 971 | 8,641 |
| 4 7/8 | 124 | 41.4 | 61.6 | 1,023 | 9,106 |
| 5 | 127 | 43.5 | 64.7 | 1,076 | 9,579 |
| DIAMETER | APPROX. WEIGHT | MINIMUM BREAKING LOAD | |||
| inches | mm | lb/ft | kg/m | Tons | kN |
| 2 3/4 | 70 | 12.9 | 19.2 | 313 | 2,782 |
| 2 7/8 | 73 | 14.1 | 21.0 | 342 | 3,044 |
| 3 | 76 | 15.4 | 22.9 | 371 | 3,306 |
| 3 1/8 | 79 | 16.7 | 24.9 | 403 | 3,585 |
| 3 1/4 | 83 | 18.3 | 27.2 | 439 | 3,906 |
| 3 3/8 | 86 | 19.6 | 29.2 | 470 | 4,185 |
| 3 1/2 | 89 | 21.1 | 31.4 | 505 | 4,498 |
| 3 5/8 | 92 | 22.3 | 33.2 | 542 | 4,828 |
| 3 3/4 | 95 | 24.2 | 36.0 | 580 | 5,166 |
| 3 7/8 | 98 | 26.0 | 38.7 | 628 | 5,589 |
| 4 | 102 | 27.8 | 41.4 | 669 | 5,952 |
| 4 1/8 | 105 | 29.8 | 44.3 | 719 | 6,400 |
| 4 1/4 | 108 | 31.8 | 47.3 | 764 | 6,798 |
| 4 3/8 | 111 | 33.9 | 50.4 | 816 | 7,263 |
| 4 1/2 | 114 | 36.0 | 53.6 | 856 | 7,618 |
| 4 5/8 | 117 | 38.3 | 57.0 | 904 | 8,049 |
| 4 3/4 | 121 | 40.4 | 60.1 | 954 | 8,488 |
| 4 7/8 | 124 | 42.5 | 63.2 | 1,005 | 8,945 |
| 5 | 127 | 44.8 | 66.7 | 1,057 | 9,410 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
