Bridon Tiger®

BiG T Bristar

Bridon® 8 strand rope with Bristar® technology for dragline drag and hoist positions.

Looking for a quote or more info?

Applications

Hoist Rope (Dragline)

Advantages

Bristar® encapsulated IWRC
Exceptional service life
High breaking load due to Dyform® outer strands
Excellent resistance to wear
Reduced wear and rifling in the drum and sheave grooves
Even load distribution
Reduced internal friction
Increased bend fatigue
Elimination of grit and dirt due to Bristar Core®
Increased torsional stability

Downloads

Surface mining catalogue

Features

Compaction Dyform

Core Bristar

Steel Grades 1770, 1960 or 2160

Lay type Langs lay or Regular lay

Lay Direction RH or LH

Finish Bright or Galvanised

Bridon Tiger® BiG T Bristar® specification

^{Note for more detailed information please download the brochure above.}

Rope Diameter		Minimum Breaking Force
Inch	mm	tons (2000 lbs)	metric tons
3	77	468	424
3 1/8	80	506	459
3 1/4	83	544	494
3 3/8	86	585	530
3 1/2	90	637	578
3 5/8	92	676	613
3 3/4	96	729	661
4	102	830	753
4 3/8	112	993	900
4 1/2	114	1032	936
4 3/4	122	1161	1053
5	128	1287	1168
5 5/8	144	1620	1470

^{This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.}

Bridon Tiger® BiG T Bristar®

Bridon® 8 strand rope with Bristar® technology for dragline drag and hoist positions.

Bridon Tiger® BiG T6 Compacted

Bridon® brand compacted 6 strand rope for draglines.

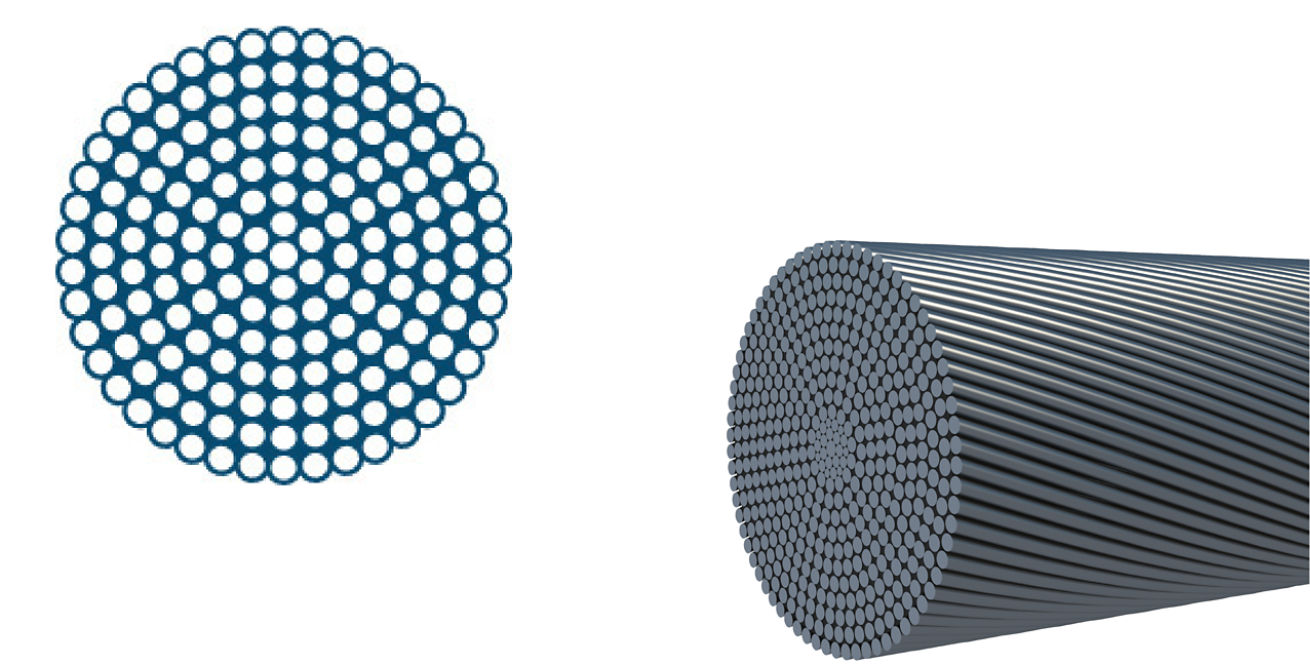

Spiral Strand

A spiral strand is a composite of multiple layers of helically twisted steel wires. Layers are spun in opposite directions providing constructional and torque stability. The use of high strength steel wires makes it a good candidate as tension member in static applications. Our proprietary Bekaert blocking compound fills the cable on the inside, reducing the impact of steel-steel contact, and adding an additional barrier against corrosion.

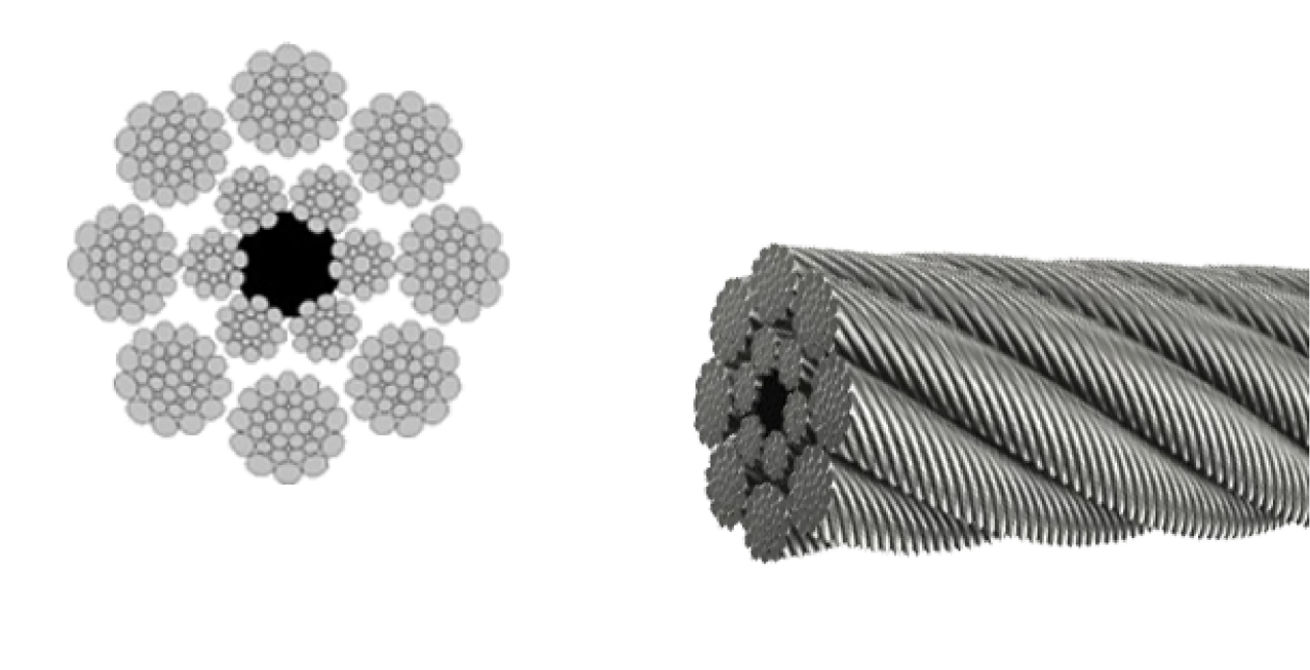

Tuff 8

Bekaert’s TUFF 8 mining ropes offer effective solutions to one of the most demanding rope applications in the mining industry. Manufactured with class leading machinery at our Newcastle ropery, TUFF 8 ropes are recommended for use in dragline applications and are designed to withstand the pressure placed on them by mining equipment.

Bridon Tiger® BiG T8

Bridon® brand 8 strand construction for draglines.

Bridon Tiger® BiG T8 Compacted

Bridon® brand compacted 8 strand rope for draglines.

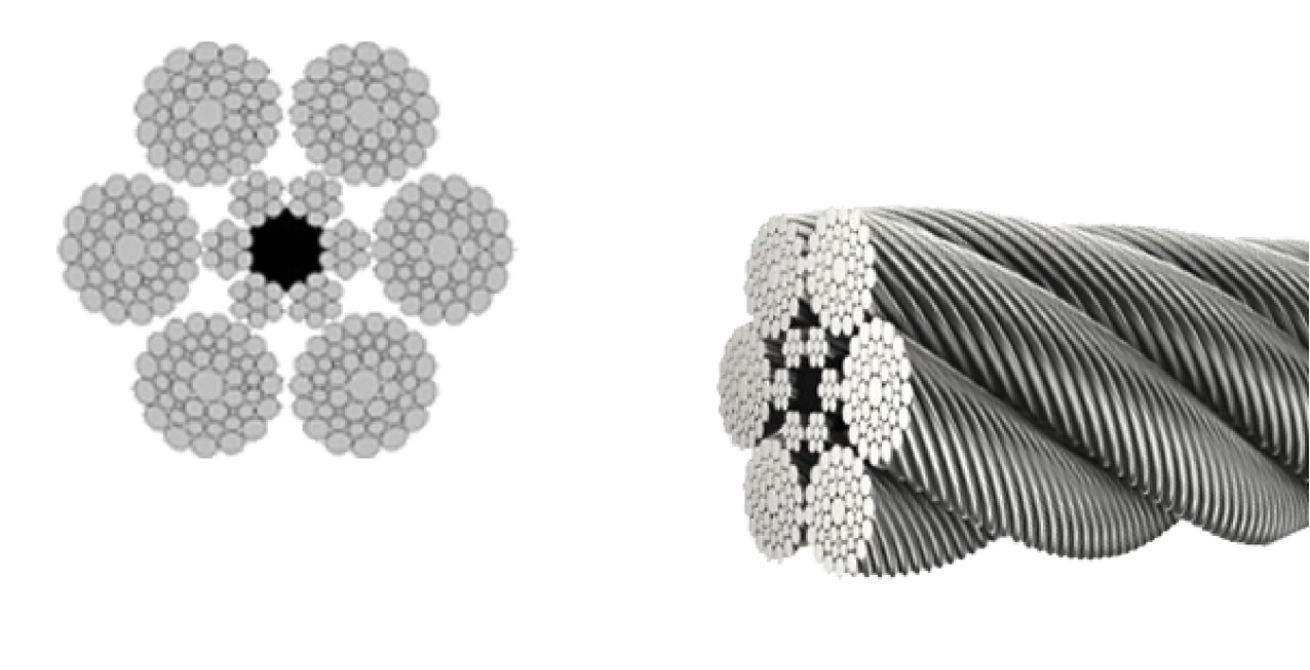

Tuff 6

Bekaert’s TUFF 6 mining ropes offer effective solutions to one of the most demanding rope applications in the mining industry. Manufactured with class leading machinery at our Newcastle ropery, TUFF 6 ropes are recommended for use in dragline applications and are designed to withstand the pressure placed on them by mining equipment.

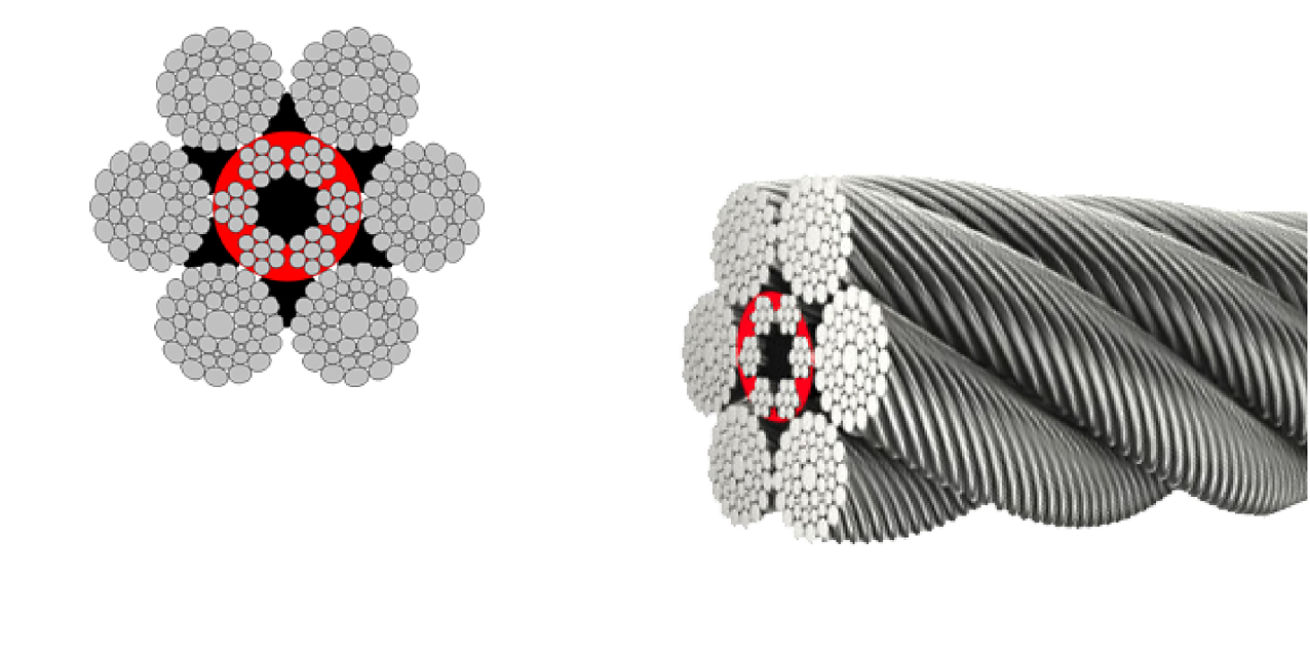

Redbak Max
