Tiger 6R

Bridon Tiger® 6R is the most common used rope on friction winders with reliable performance.

Looking for a quote or more info?

Applications

Haulage Ropes

Advantages

Proven performance
Well known for maintenance
Flexible
Robust due to big outer wires

Downloads

Bridon® Underground Mining Brochure

Features

Compaction -

Core Fibre core

Steel Grades 1770, 1860 or 1960

Lay type Langs lay or Regular lay

Lay Direction RH or LH

Finish Bright or Galvanised

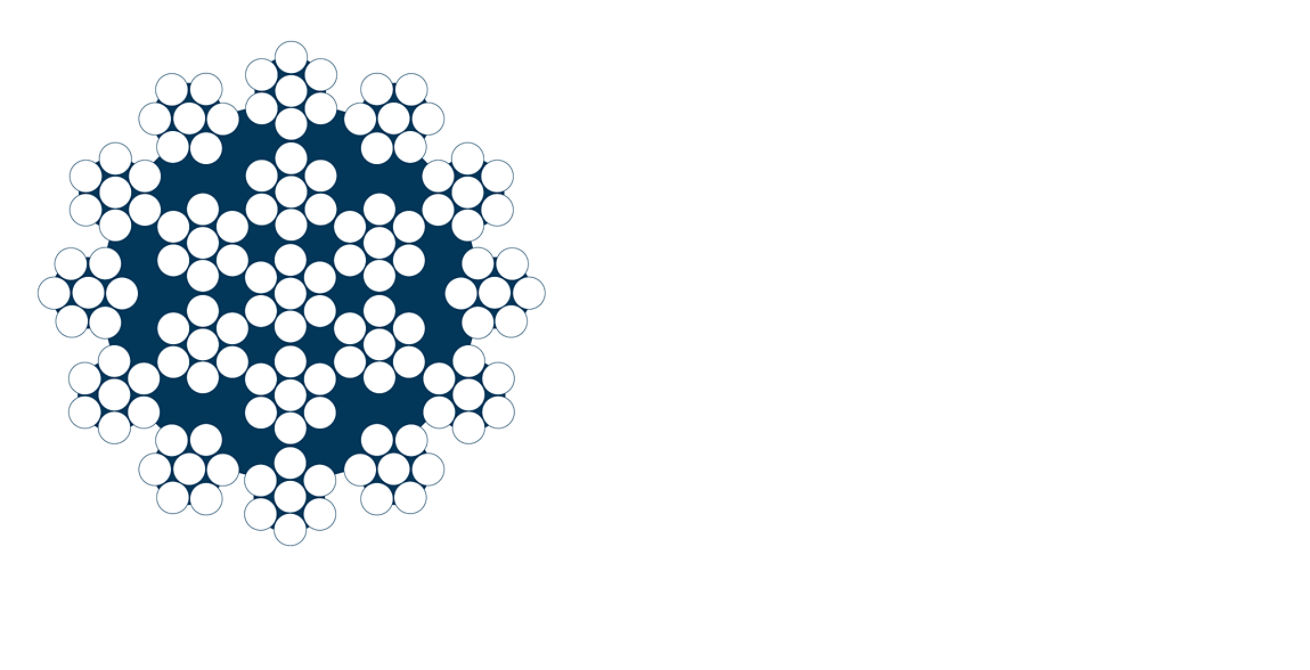

Bridon Tiger® 6R 6x36 (WS) specification

^{Note for more detailed information please download the brochure above.}

Tables

Diameter	Approx. Mass	Calculated Aggregate Breaking Force			Calculated Minimum Breaking Force
Diameter	Approx. Mass	1570 N/mm²	1770 N/mm²	1960 N/mm²	1570 N/mm²	1770 N/mm²	1960 N/mm²
mm	kg/m	kN	kN	kN	kN	kN	kN
22	1.86	317	357	396	276	311	344
23	2.04	347	391	433	301	340	376
24	2.22	377	425	471	328	370	410
25	2.41	409	462	511	356	402	445
26	2.60	443	499	553	385	434	481
27	2.81	478	539	597	416	469	519
28	3.02	514	579	642	447	504	558
29	3.24	551	621	688	479	541	599
30	3.47	590	665	737	513	579	641
31	3.70	630	710	787	548	618	684
32	3.94	671	757	838	584	658	729
33	4.19	714	805	891	621	700	775
34	4.45	758	854	946	659	743	823
35	4.72	803	905	1000	699	788	872
36	4.99	850	958	1060	739	833	923
37	5.27	898	1010	1120	781	880	975
38	5.56	947	1060	1180	824	929	1020
39	5.86	997	1120	1240	868	978	1080
40	6.17	1040	1180	1310	913	1020	1130
41	6.48	1100	1240	1370	959	1080	1190
42	6.80	1150	1300	1440	1000	1130	1250
43	7.13	1210	1360	1510	1050	1180	1310
44	7.46	1270	1430	1580	1100	1240	1370
45	7.8	1320	1490	1650	1150	1300	1440
46	8.2	1380	1560	1730	1200	1360	1500
47	8.5	1440	1630	1800	1260	1420	1570
48	8.9	1510	1700	1880	1310	1480	1640
49	9.3	1570	1770	1960	1370	1540	1710
50	9.6	1630	1840	2040	1420	1600	1780
51	10.0	1700	1920	2130	1480	1670	1850
52	10.4	1770	1990	2210	1540	1730	1920
53	10.8	1840	2070	2300	1600	1800	2000
54	11.2	1910	2150	2380	1660	1870	2070
55	11.6	1980	2230	2470	1720	1940	2150
56	12.0	2050	2310	2560	1780	2010	2230
57	12.5	2130	2400	2660	1850	2090	2310
58	12.9	2200	2480	2750	1910	2160	2390
59	13.4	2280	2570	2850	1980	2230	2480
60	13.8	2360	2660	2940	2050	2310	2560
61	14.3	2440	2750	3040	2120	2390	2650
62	14.8	2520	2840	3140	2190	2470	2730
63	15.3	2600	2930	3250	2260	2550	2820
64	15.6	2680	3020	3350	2330	2630	2910
65	16.2	2770	3120	3460	2410	2710	3010
66	16.7	2850	3220	3560	2480	2800	3100

^{This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.}

Bridon Tiger® 6R 6x19 (S) specification

^{Note for more detailed information please download the brochure above.}

Tables

Diameter	Approx. Mass	Calculated Aggregate Breaking Force			Calculated Minimum Breaking Force
Diameter	Approx. Mass	1570 N/mm²	1770 N/mm²	1960 N/mm²	1570 N/mm²	1770 N/mm²	1960 N/mm²
mm	kg/m	kN	kN	kN	kN	kN	kN
16	0.95	163	183	203	141	160	177
17	1.08	184	207	229	160	180	200
18	1.21	206	232	257	179	202	224
19	1.35	230	259	287	200	225	249
20	1.49	254	287	318	221	250	276
21	1.64	281	316	350	244	275	305
22	1.81	308	347	385	268	302	335
23	1.97	337	380	420	293	330	366
24	2.15	367	413	458	319	360	398
25	2.33	398	449	497	346	390	432
26	2.52	430	485	537	374	422	467
27	2.72	464	523	580	404	455	504
28	2.93	499	563	623	434	490	542
29	3.14	536	604	669	466	525	582
30	3.36	573	646	716	499	562	623
31	3.59	612	690	764	532	600	665
32	3.82	652	735	814	567	640	708
33	4.07	694	782	866	603	680	753
34	4.32	736	830	919	641	722	800
35	4.58	780	880	974	679	765	848
36	4.84	826	931	1030	718	810	897
37	5.12	872	983	1080	759	855	947
38	5.40	920	1030	1140	800	902	999
39	5.68	969	1090	1210	843	950	1050
40	5.98	1010	1140	1270	887	1000	1100
41	6.28	1070	1200	1330	932	1050	1160
42	6.59	1120	1260	1400	978	1100	1220

Bridon Tiger® Half Lock Guide Ropes

Bekaert's Bridon Tiger® Half Lock Guide Ropes deliver high strength along with good resistance to wear and corrosion and reduced stretch.

WRI Cushion® 34

A 34x19 construction provides improved flexibility and an approximate natural loop to rope ratio of 45-1. Multi-strand spin resistance and plastic enhancement allow for smooth in-service operation, significantly reduced rope torque and stretch, and less movement in the shaft whenthe rope is at full speed. Full plastic impregnation improves spin-resistance and eliminates internal cross cutting of the strands which is common to other multi-strand products, thereby extending service life and improving security. Galvanised wire and WRI's patented one-step impregnationand jacketing process, which provides a thick protectiveouter layer of plastic, prevents contaminants fromcorroding the rope and eliminates the need for costly in-field lubrication.

WRI® DyPac 34

DyPac strand enhancement of a 34x7 (LCD) construction provides additional performance, an increase in strength of approximately 15%, reduced sheave and drum wear, and significantly enhanced drum spooling. As a result, operating depths can be extended up to approximately 6000 ft. (1830 m).

WRI® Tri-MAX

A well-proven 6x27 langs-lay flattened triangular strand construction provides 2.5 times the contact area of a round strand rope. Designed for increased rope strength, wear resistance and fatigue life, and exceptional resistance to drum crushing. The (3/3) triangular strand center construction provides the best strength/performance combination for drums with a recommended D/d ratio of 80/1.

Bridon Tiger Dyform® 6R

The Bridon Tiger Dyform® 6R is a high strength 6 strand rope on friction winders with reliable performance.

Bridon Tiger® 6R Bristar®

Bridon Tiger® 6R Bristar® is the most common used rope on friction winders with reliable performance, advanced diameter stability and lifetime with a Bristar® core.

WRI Power-Loc® HLC

WRI Power-Loc® HLC guide and rubbing ropes have five decades of proven track record. A specially designed half-locked coil construction provides excellent rotation resistance, superior wear properties and minimal movement in the shaft when compared to other rope constructions. Locked coil rope guides provide a cost-effective alternative to rigid wood or metal guides by allowing for reduced shaft sizes and structures, improved air displacement on moving conveyances and minimized damage and wear caused by vibration.

Bridon Tiger® 34M SPI

The Bridon Tiger® 34M SPI construction is a rotation resistant rope in a 3-layer construction with synthetic fibre core. The rope is flexible and provides easy handling and installation. Bridon Tiger® 34M SPI can be used as a hoist or a balance rope. When used as a balance rope, the rope can be sheathed and plastic impregnated.
