Bridon®

Hydra Plus

The Hydra is a range of high performance multi-strand low rotational galvanized ropes for Offshore Oil and Gas applications including; offshore cranes, winches, and A&R lines.

Looking for a quote or more info?

Mission critical ropes.

Hydraplus ropes are known for their superior fatigue resistance and corrosion protection, achieved through advanced galvanization and advanced lubrication processes. These ropes are ideal for the heavy lifting & offshore energy sectors where extended service life and high performance under challenging conditions are critical.

Technology enhancements

HYDRA PLUS PI

Plastic Impregnation

Reduce bend fatigue and improve core service life with plastic injection technology.

Learn more

HYDRA PLUS NXG

NXG

Advanced next generation low friction polymer technology incorporating unique additives to further enhance fatigue life of plasticated ropes.

Learn more

Applications

Main Hoist Ropes
Auxiliary Hoist Ropes
Winch Lines

Advantages

Dyform® construction for crush & wear resistance
Higher fatigue performance
Engineered low rotational characteristics
Designed for multilayer spooling

Downloads

Bridon® Offshore Energy brochure

Features

Compaction Dyform

Core IWRC, PI, NXG

Steel Grades 1770, 1960 or 2160

Lay type Langs lay or Regular lay

Lay Direction RH or LH

Finish Bright or Galvanised

Bridon® Hydra Plus / NXG specification

^{Note for more detailed information please download the brochure above.}

Diameter		Nominal Length Mass		Minimum Breaking Force
Diameter		Nominal Length Mass		EIPS / 1960			EEIPS / 2160
mm	in	kg/m	lbs/ft	kN	Tonnes	Tons	kN	Tonnes	Tons
50.8	2	12.9	8.64	2330	238	262	2450	250	275
52	-	13.5	9.06	2450	250	275	2560	261	288
54	-	14.5	9.77	2640	269	297	2760	281	310
56	-	15.6	10.50	2840	290	319	2970	303	334
60	-	17.9	12.06	3250	331	365.3	3410	348	383
62	-	19.2	12.87	3480	355	391	3640	371	409
64	-	20.4	13.72	3700	377	416	3880	396	436
66	-	21.7	14.59	3940	402	443	4120	420	463
68	-	23	15.49	4180	426	470	4380	446	492
70	-	24.4	16.41	4430	452	498	4640	473	521
72	-	25.8	17.36	4680	477	526	4910	501	552
74	-	27.2	18.34	4950	505	556	5180	528	582
76	-	28.7	19.34	5220	532	587	5470	558	615
78	-	30.3	20.38	5490	560	617	5760	587	647
80	-	31.9	21.43	5780	589	649	6060	618	681
82	-	32.3	21.68	5890	600	662	6170	629	693
84	-	33.9	22.75	6180	630	694	6480	661	728
86	-	35.5	23.85	6480	661	728	6790	692	763
88	-	37.2	24.97	6780	691	762	7110	725	799
90	-	38.9	26.12	7100	724	798	7430	757	835
92	-	40.6	27.29	7420	756	834	7770	792	873
96	-	44.2	29.74	8070	823	907	8450	861	949
98	-	46.1	30.97	8410	857	945	8810	898	990
102	-	50.4	33.88	9170	935	1030	9600	979	1079
106	-	54.5	36.59	9910	1010	1114	10370	1057	1165
108	-	56.5	37.99	10270	1047	1154	10760	1097	1209
110	-	58.6	39.41	10660	1087	1198	11160	1138	1254
116	-	65.2	43.82	11840	1207	1330	-	-	-
122	-	72.1	48.47	13100	1335	1472	-	-	-
124	-	74.5	50.07	13530	1379	1520	-	-	-
128	-	79.4	53.36	14410	1469	1619	-	-	-
130	-	81.9	55.04	14870	1516	1671	-	-	-
135	-	88.3	59.35	15290	1559	1718	-	-	-
138	-	92.3	62.02	15980	1629	1796	-	-	-
142	-	97.7	65.67	16910	1724	1900	-	-	-
146	-	103.3	69.42	17870	1822	2008	-	-	-
150	-	109.0	73.27	18850	1922	2118	-	-	-
152	-	112.0	75.24	19350	1972	2174	-	-	-

^{This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.}

Bridon Dyform® 6

Bridon Dyform® 6 is a high performance compacted single layer constructed rope for various cranes and industrial applications.

Bridon Diamond Blue®

Bridon Diamond Blue® is a 6 strand galvanized conventional rope produced with a steel core fully lubricated during the production process.

Bridon® Hydra Plus / NXG

The Hydra is a range of high performance multi-strand low rotational galvanized ropes for Offshore Oil and Gas applications including; offshore cranes, winches, and A&R lines.

Bridon® 8 Series

The 8 series is a range of general purpose 8 stranded bright & galvanised ropes produced with a steel core, fully lubricated during manufacture producing in accordance with EN 12385.

Bridon Dyform® 34LR MAX

The Dyform® 34 LR MAX is a high performance compacted low rotational rope that combines varying multistrand rope designs to achieve excellent rotation resistance in high lift operations.

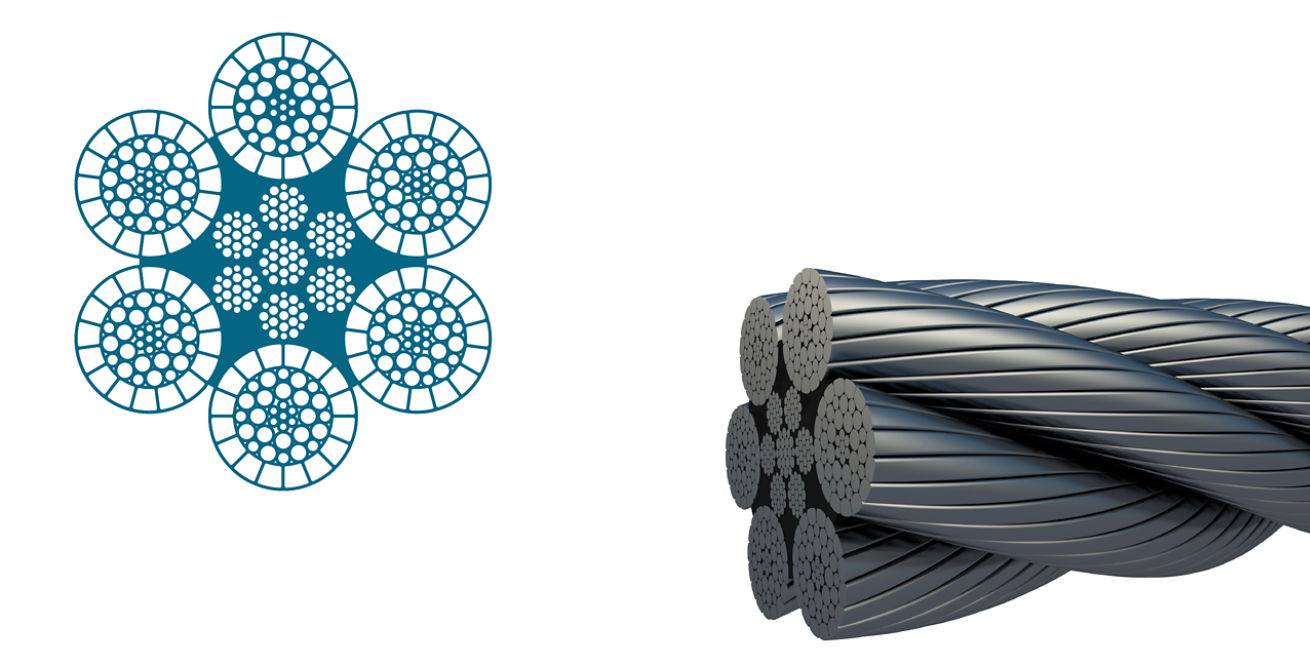

Bridon Dyform® DB2K
